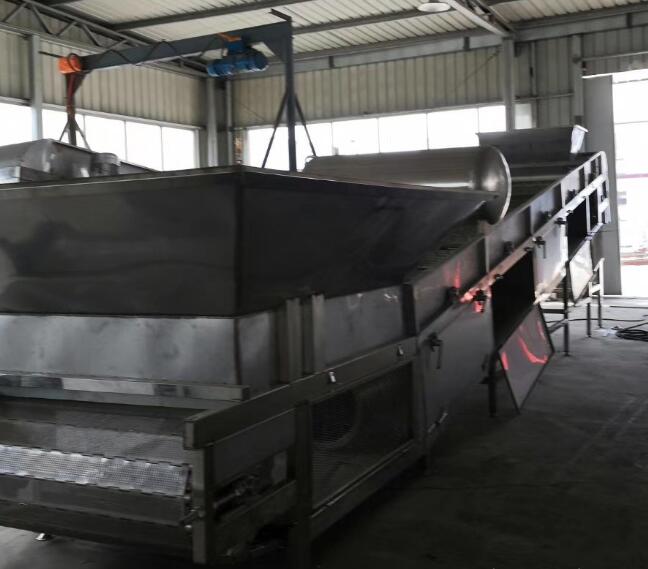

新型自动凉茬机是将摊晾、加浆、加曲、搅拌、卸料等工序一次性完成,与传统工艺相比,大大降低劳动强度,实现机械自动化。本机装有多个轴流风机,通过风量的调节,使高温凉茬在输送过程中降到规定的温度,摊晾效果好,在摊晾过程中设置多个搅拌装置,使凉茬在摊晾过程中松散、不易结坨,加浆、下曲均匀,数量可调节,通过装置可将浆水、曲粉、粮茬搅拌均匀。
The new type of automatic stubble cooler completes the processes of air spreading, slurry adding, starter adding, stirring and unloading at one time. Compared with the traditional process, it greatly reduces the labor intensity and realizes the mechanical automation. The machine is equipped with several axial-flow fans. Through the adjustment of air flow, the high-temperature cold stubble can be lowered to the prescribed temperature in the process of conveying, and the spreading effect is good. In the spreading process, several mixing devices are set up to make the cold stubble loose, not easy to set up, the pulping and downwarping are even, and the quantity can be adjusted. Through the device, the slurry, starter and stubble can be stirred evenly.
新型自动凉茬机的结构组成
Structure Composition of New Type Automatic Stubble Cooler
1.主要由机架、风机、传送带和依次连接于传送带上的搅笼、打料棍、翻料棍、下料装置、出料管组成.
1. It is mainly composed of frame, fan, conveyor belt and agitator, beating rod, turning rod, discharging device and discharging pipe connected to conveyor belt in turn.
2.风机固定在传送带侧端的机架上并少设置为三台,所述的下料装置由下料斗和固接于下料斗下部的下料辊组成,所述的机架上设有高于传送带输送线两边的挡板。
2. The fan is fixed on the frame at the side end of the conveyor belt and is provided with at least three sets. The discharging device is composed of a discharging hopper and a discharging roller fixed to the lower part of the discharging hopper. The frame is provided with a baffle higher than the two sides of the conveyor belt conveyor line.
3.使用时,酒茬在传送带上通过,在打碎和搅拌的同时风机工作,迅速降温,冷却后的酒茬在下料装置中与酒曲自动混合均匀。
3. When used, the stubble passes through the conveyor belt, and the fan works at the same time of smashing and stirring, which can quickly cool down. The cooled stubble is automatically mixed evenly with the koji in the feeding device.
4.实用新型全自动打茬机提高了冷却效果、降低了功耗,了现有设备自积堵塞现象,并实现了酒茬和酒曲的自动混合。
4. The utility model fully automatic stubble beater improves the cooling effect, reduces power consumption, solves the self-blocking phenomenon of existing equipment, and realizes the automatic mixing of stubble and koji.
不锈钢打凉茬机包括机架,机架的上料端与加料结构连接、出料端与出料结构连接,上料端设有一带轮,出料端设有第二带轮,打凉茬机价钱,一带轮与二带轮通过输送带连接,第二带轮通过减速机与驱动电机连接,打凉茬机,驱动电机与机架连接,第二带轮位置高于一带轮位置,在输送带靠近出料端一侧的机架上设有支撑架,在支撑架上设有水箱,水箱下部设有喷管,所述喷管轴线与输送带平行设置,打凉茬机,水箱通过出水管道与喷管连接,出水管道上设有水开关阀门,喷管上设有喷头,水箱内加注常温水。采用常温水喷洒在茬料上以满足茬料的湿度要求、节约能源,淀粉得到充分地糊化,有利于后续发酵工艺的进行,提高了淀粉利用率和出酒率,提高经济效益。
Stainless steel stubble cooler includes rack, the upper end of rack is connected with feeding structure, the outlet end is connected with discharging structure, the upper end is connected with a belt wheel, the outlet end is equipped with a second belt wheel, the price of stubble cooler, one belt wheel is connected with two belt wheels through conveyor belt, the second belt wheel is connected with drive motor, the price of stubble cooler, the driving motor is connected with rack, and the second belt wheel is connected with conveyor belt wheel. The position is higher than that of a belt wheel. A support frame is arranged on the frame near the discharge end of the conveyor belt, a water tank is arranged on the support frame, and a nozzle is arranged on the lower part of the water tank. The axis of the nozzle is parallel to the conveyor belt. The water tank is connected with the nozzle through the outlet pipe. A water switch valve is arranged on the outlet pipe, a nozzle is arranged on the nozzle, and normal temperature water is injected into the water tank. Spraying normal temperature water on stubble to meet the humidity requirement of stubble, save energy, and make starch gelatinized sufficiently, which is conducive to the subsequent fermentation process, improve starch utilization rate and liquor yield, and improve economic benefits.
不锈钢凉茬机,其特征是:由机架、风机、传送带和依次连接于传送带上的搅笼、打料辊、翻料辊、下料装置、出料管组成,所述的风机固定在传送带侧端的机架上并少设置为三台,所述的下料装置由下料斗和固接于下料斗下部的下料辊组成,所述的机架上设有高于传送带输送线两边的挡板。
The stainless steel stubble cooler is characterized by a frame, a fan, a conveyor belt, a stirring cage, a feeding roll, a turning roll, a feeding device and a discharging pipe connected sequentially to the conveyor belt. The fan is fixed on the frame at the side end of the conveyor belt and at least three sets are arranged. The feeding device is composed of a feeding hopper and a discharging roll fixed to the lower part of the feeding hopper. It is higher than the baffles on both sides of the conveyor belt.
